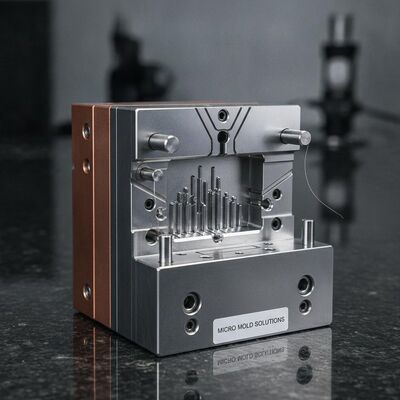

High-Speed CNC Milling EDM Sinker Injection Mold for 0.05mm Wall Thickness Micro Features
| Tempat asal | Xiamen, Fujian, Cina |
|---|---|
| Nama merek | Creator |
| Sertifikasi | ISO 9001:2015 |
| Nomor model | KD-MIKRO-001 |
| Kuantitas min Order | 100 buah |
| Harga | negotiable |
| Kemasan rincian | Karton kelas ekspor dengan tas PE, dikemas dalam palet untuk pengiriman kontainer |
| Waktu pengiriman | 25-35 hari kerja untuk cetakan baru, 7-15 hari untuk produksi |
| Syarat-syarat pembayaran | T/T, L/C, PayPal, Serikat Barat |
| Menyediakan kemampuan | 100000 Potongan Per Bulan |
Detail produk
| permesinan | Pemberat CNC + EDM Berkecepatan Tinggi | Fitur Minimal | Dinding 0,05mm |
|---|---|---|---|
| Aplikasi | Konektor Elektronik | ||
| Menyoroti | 0.05mm Wall Thickness Injection Mold,High-Speed CNC Milling Precision Mold,EDM Sinker Technology Micro Feature Mold |
||
Deskripsi Produk
High Speed CNC Milling EDM Sinker Deep Rib Micro Feature Injection Mold for Electronic Connector
Specializing in micro-feature and deep-rib injection molds, Xiamen Creator Technology Co., Ltd. utilizes high-speed CNC milling combined with precision EDM sinker technology to produce molds for electronic connectors, micro switches, and precision components with features as small as 0.05mm wall thickness.
Key Features & Advantages
- High-speed CNC milling at 24,000 RPM for fine surface finishes
- CNC EDM sinker with graphite and copper electrodes for deep ribs
- Micro-feature machining capability: 0.05mm minimum wall thickness
- Polished ejector pin holes and precision sliding core mechanisms
- Conformal cooling channels for uniform temperature in micro parts
- Mold flow analysis to optimize filling of thin-wall sections
Technical Specifications
| Equipment | High-Speed CNC Mill + EDM Sinker |
| CNC Spindle | 24,000 RPM |
| Min Wall Thickness | 0.05mm |
| Feature Resolution | ±0.005mm |
| Electrode Material | Graphite / Copper |
| Cooling | Conformal Cooling Channels |
| Mold Steel | S136, NAK80, H13 |
| Application | Electronic Connectors, Micro Switches, Sensors |
Manufacturing Excellence
Our micro-feature mold making capability is built on high-speed CNC milling and advanced EDM sinker technology. We use specialized micro-tooling down to 0.2mm diameter and custom-ground graphite electrodes for deep rib EDM. Each micro mold undergoes comprehensive Moldflow simulation before machining to ensure perfect filling of thin-wall sections.
Frequently Asked Questions
Q: What is the smallest feature you can mold?
A: We can achieve molded part features as small as 0.05mm wall thickness with our high-speed CNC and precision EDM technology.
Q: Do you make connectors with 0.4mm pitch?
A: Yes. We manufacture precision connector molds with 0.4mm and finer pin pitch, requiring extreme precision in electrode manufacturing and EDM processing.
Q: How do you prevent short shots in thin-wall parts?
A: We use Moldflow analysis to optimize gate location and size, combined with high injection speeds and precise temperature control to ensure complete filling.
Q: Can you add conformal cooling to micro molds?
A: Yes. We design and machine conformal cooling channels that follow the part geometry, providing uniform cooling for micro-feature parts and reducing cycle time.
